Flemish Brassware
Ruckers Brassware Derived mainly from the brassware found on the 1638 double-manual in the Russell collection in Edinburgh. Also Couchet…
 Ref. 1Flap hinge 67mm open |
 Ref. 2Strap hinge 210mm wide 15mm return |
 Ref. 3Lock & Hasp Lock plate 105x66mm |
 Ref. 4Harp stop escutcheon 53mm wide |
 Ref. 5Lever escutcheon 45x53mm |
 Ref. 71Ruckers-Delin hook 45mm pivot to end |
 Ref. 127Ruckers-Taskin ‘bird’ hook (double-sided) 55mm pivot to end |
 Ref. 138Hook from 1638 Ruckers (double-sided) 47mm pivot to end |
 Ref. 25Prop stick support: wide enough for the pivoting stick to have a short stick in the centre of the main one. |

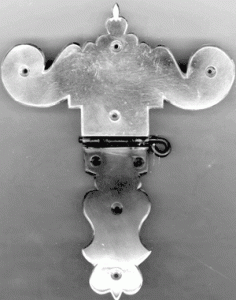

 Ref. 182Strap hinge Dulcken1745 (John Barnes’ collection, Edinburgh) |

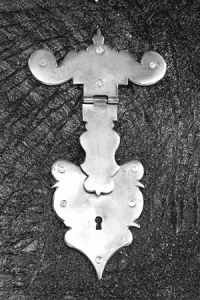

 Ref. 183Lock and hasp, Dulcken 1745 |

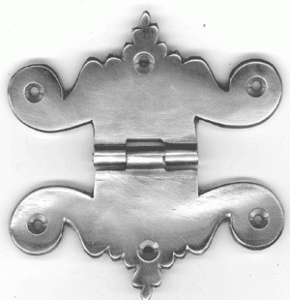

 Ref. 184 Dulcken pattern flap hinge |

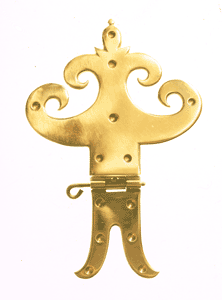

 Ref. 185Couchet strap hinge Based on the original hinges on the Couchet-Taskin in Stockholm 100mm wide x 93mm |

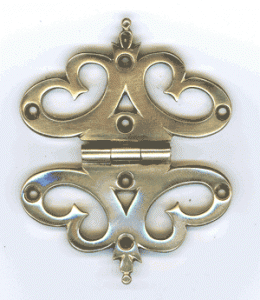

 Ref. 194 Flap hinge to match Ref. 185 53mm wide x 67mm open |

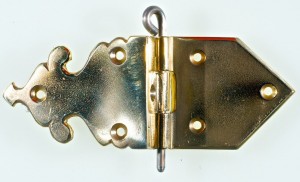

 Ref. 195Colmar Ruckers Strap hinge 39mm wide x 53 long (top) return is 12mm |
 Ref. 196 Colmar Ruckers Flap hinge 100mm open x 29 wide |
