Flap Hinges

Flap hinges – Photographs are not to scale!

Ref. 1
Ruckers  Brassware Derived mainly from the brassware
found on the 1638 double
Ref. 7
My suites of brassware derived loosely from Keene 1668

Ref. 9
Spinets Hayward 1680

Ref. 12
'G.Z. 1622' Italian
Ref. 16
Spinets Hayward 1680
Ref. 19
Tisseran 1700 & Barton 1709
English harpsichord stuff
Ref. 30
William Smith c.1720
English harpsichord stuff
Ref. 31
Garnier 1747
French harpsichords

Ref. 33

'Anon 1623'
English harpsichord stuff

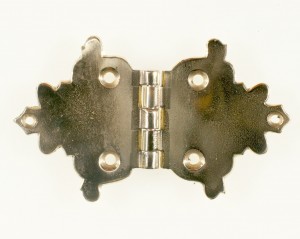

Ref. 34
Late English harpsichords
Ref. 35
Taskin 1769
French harpsichords
Ref. 40
Hitchcock Spinet Flap Hinge
Ref. 41 & Ref. 114
Spanish
Ref. 66
Meitke
German Harpsichord stuff


Ref. 92
Hass
Clavichord brassware
Ref. 99
Mietke
German Harpsichord stuff
Ref. 125
Stein 1785
Ref. 129
Gräbner 1739
German Harpsichord stuff
Ref. 134
'Leipzig Nr. 2'
Clavichord brassware

Ref. 149

Small Flemish or Italian??
Italian

Ref. 165

Silberman 1775
Clavichord brassware

Ref. 171

'Hoffman 1784'
Clavichord brassware

Ref. 184

Dulcken pattern flap hinge

Ref. 192

Donzelague flap hinge
56mm x 90mm open

Ref. 196

Colmar Ruckers flap hinge
30mm wide x 100mm open

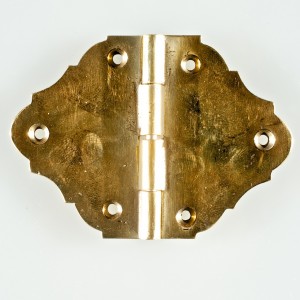

Ref. 225

'Milan' Ruckers-Taskin
Flap is 60mm wide x 82mm open
return on strap hinge is 15mm
but works fine on 12.5mm lids
